De Dusting Booth

Our Products Categories

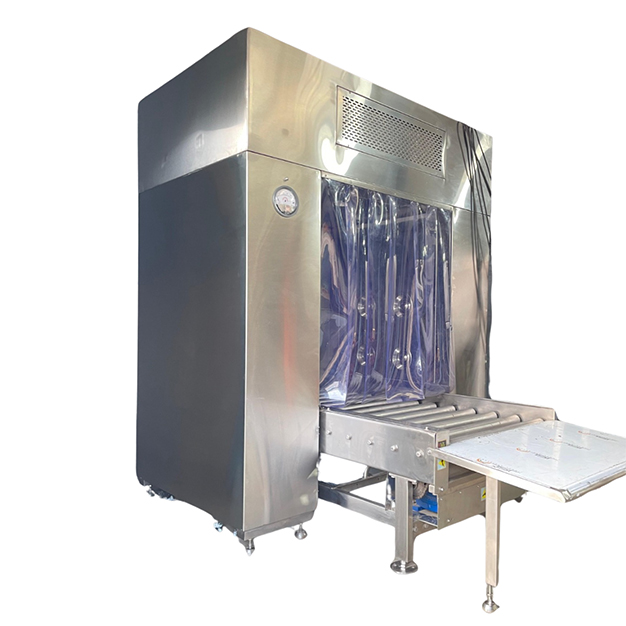

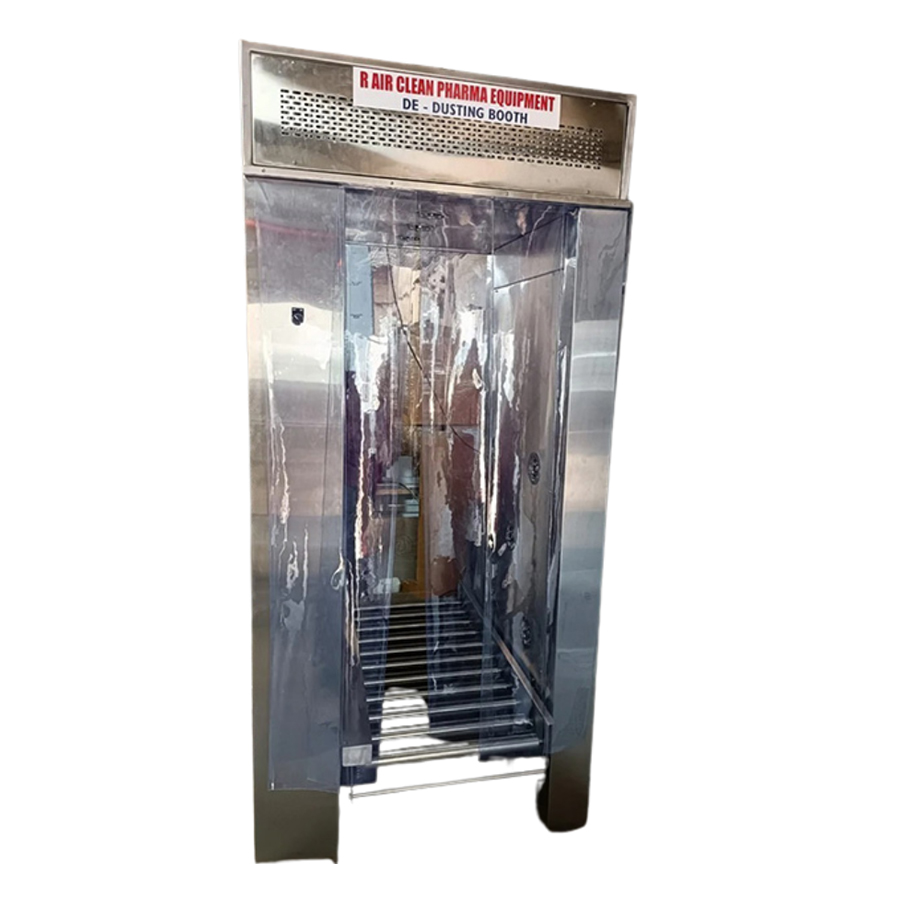

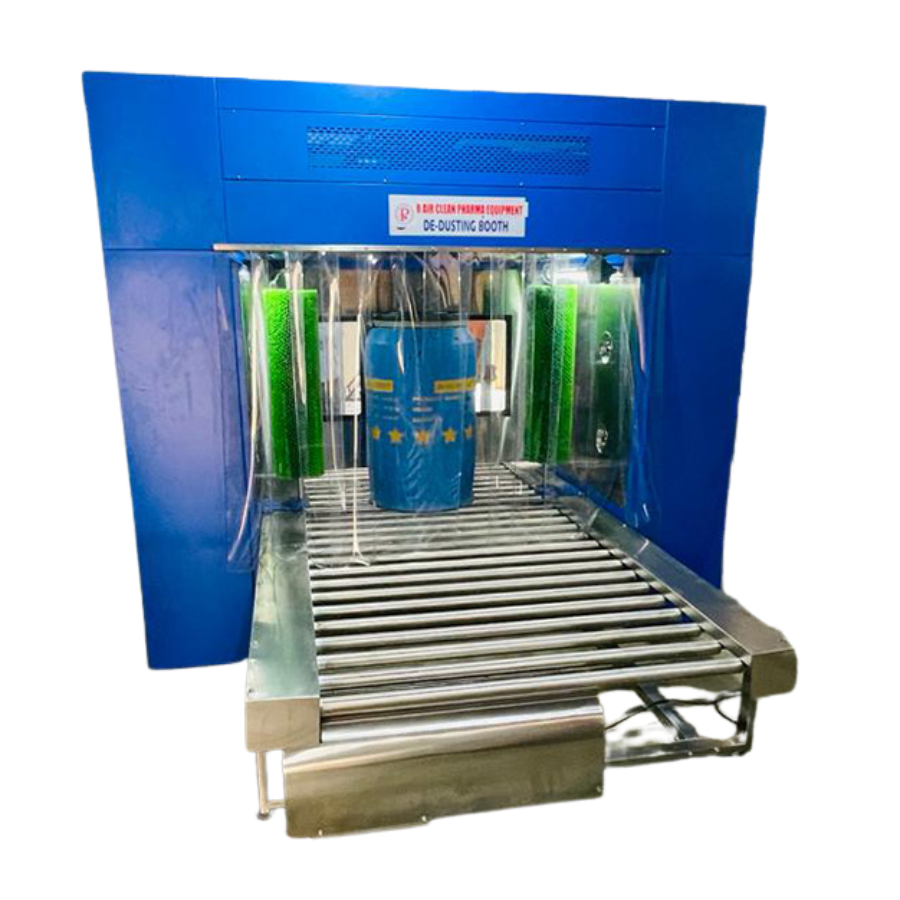

An enclosed booth where personnel or items are cleansed of dust particles through controlled airflows, essential for maintaining cleanroom standards.

MOC	SS 304 1.2mm Thickness, (Make:- Jindal Stainless Limited)
De-Dusting Booth System	The De-Dusting Booth System is used to remove the loose particles / dust present on the receiving materials, which will be brought into the warehousing area before they are transferred into the quarantine area.
Material Transfer	Conveyor for materials transfers (SS 304 roller / Door)
HEPA Filter	High velocity HEPA Filter jet system (Aboe 5000fpm) with manual adjustable direction control.
Dust Extraxt System	Dust Extract System HEPA Protected at discharge ensuring no air escape from the system.
Pressure Gauge	Control system (Manual) with diferential Pressure gauges.
Removable Dust	Removable dust collection tray.
LED Light	LED Cancealed light providing light intensity in excess of 400 Lux.
Filteration Exhaust	2 Stage filteration at supply and exhaust.
Blower Assembly	Dynamically and statically balanced high static centrifugal blower.
Nozzles	Made up of SS 304 fixed type or adjustable flush type being fixed on either side walls and ceilling.
SS/ door	Vertical brushing system also available.
Tunnels	All tunnels are validated and shipped prior to dispatch with DQ,IQ,OQ as per R Air Clean Pharma Equipment.
