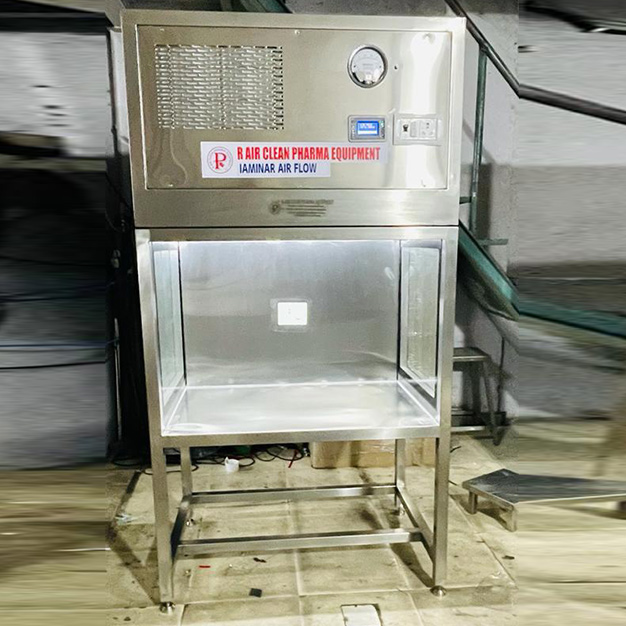

Stand Mounted Laminar Air Flow
- Home
- Stand Mounted Laminar Air Flow
Our Products Categories
Products Details
A Stand Mounted Laminar Air Flow unit provides a controlled, particle-free environment by directing HEPA-filtered air vertically or horizontally over work surfaces. Ideal for laboratory and cleanroom applications, this freestanding unit offers flexible placement and efficient protection for sensitive processes and materials.
| Moc main Body | SS 304 1mm Thickness (Make :- Jindal Stainless Limited) |
| Exhaust Hepa Filter | Hepa filter are made from water resistant, fire retardant, imported micro fine glass fibre media; conforming to EU – 14 Grade with efficiency rating 99.999% for 0.3 u. (Make :- Acme Air Filter) |
| Pre Filter | pre filter Are Made From Non – Woven Synthetic With HOPE mesh ; Conforms to EU 4 Grade, With an Efficiency Rating better than 90% down to 10 micron. (Make :- Acme Air Filter) |
| Intermediate Filter | Intermediate Filter are made from Non – Woven Synthetic With HOPE mesh; Conforms To EU -7 Grade with an efficiency rating better than 95% for 3 micron. (Make :- Acme Air Filter) |
| Motor blower | Motor blower designed of statically and dynamically balanced for supply of sufficient capacity and static pressure to take care of air flow requirement for entire life of HEPA. (Make :- National Products) |
| Different pressure Gauge | Diff pressure Gauge: (0-25mm: 2 Nos.) to monitor pressure drop across HEPA & Intermediate filter and (0-10mm 1 Nos.) across pre-filter. (Make:- Nextech) |
| Lighting | Fluorescent Light (250 Lux) at work surface. (Make:- phillips) |
| Switch Socket | 6/15 Amp Single- Phase switch Socket use for external equipment. |
| Supply Filter | Imported Minipleat HEPA filter with hpt melt technology, which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.999% for 0.3 micron. (Make :- Acme Air Filter) |
| Control Panel | Electrical control panel mounted on the side panel of the unit. |
| DOP Port | DOP Test port. |
| Electrical Supply | 230V AC1- Ø 50 HZ/ 41 5V AC 3-Ø 50 HZ |
| Noise Level | Less than 67 Db On Scale ‘A’ When Ambient is not greater than 55 Db On Scale ‘A’. |
| Vibration Level | Minimum |
